① Push Button Box Series

② The Number Of Holes

③ Push Button Box Style

④ Cover Color : Y —- Yellow  ;  G —- Grey

⑤ Base Color : W —- White

NORMAL OPERATING CONDITIONS

◐ Ambient Temperature : -25℃ ~ +40℃

◐Allowing being in the environment of 90% humidity and of the average temperature +40℃.

◐ Allowing being used in the place with rain intrusion.

◐ Being in no danger of explosion media and in the media without destructive and insulating liquid or gas that can sufficiently corrode metal and rubber.

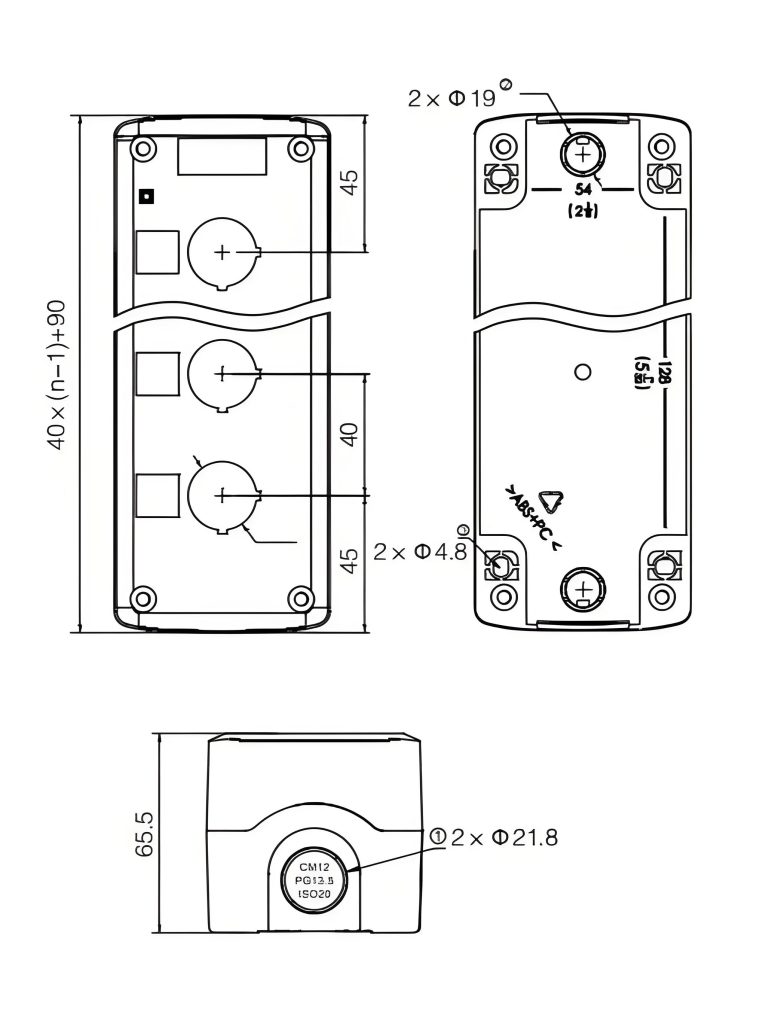

PARAMETRIC DIAGRAM

①2Φ21.8mm Tapping Hole, Optimal Wire Diameter 6-12mm

② 2Φ19 mm Tapping Hole, Bottom Inlet

③2Φ4.8mm Mounting Hole

④ N: Number Of Holes
